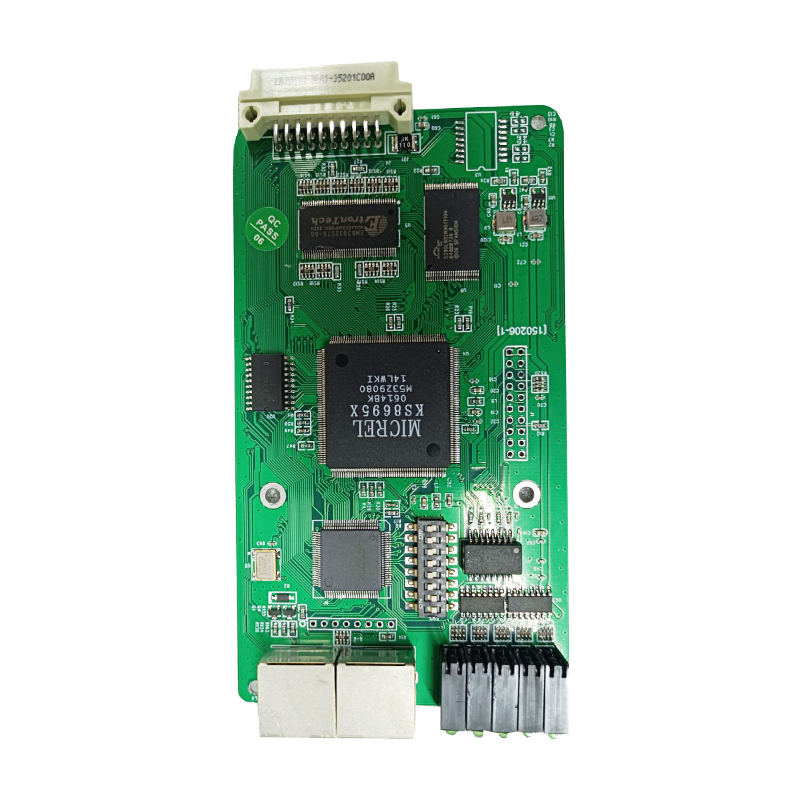

SNMP Management Card

Description

1.General Information

1.1 function

Along with rapidly development of construction and application of large-scale internet, the wide application of new technology and new equipment makes the network even more complicated. Under such circumstances, resource distribution degree and sharing degree have enhanced greatly, any small breakdown may cause user’s failure of application. How to discover and eliminate potential breakdown soon and effectively manage network well is the common question of providers of network equipment and network service. People are in urgent need of network management tool which is of perfect function, safe and reliable, convenient and flexible for using to strengthen the ability of network management and enhance the using efficiency of network.

system can be promoted to SNMP network management system through SNMP network management card, and supports communication of spanning network. Main engine of management can manage any SNMP network management card which is connected to IP city-territory net.

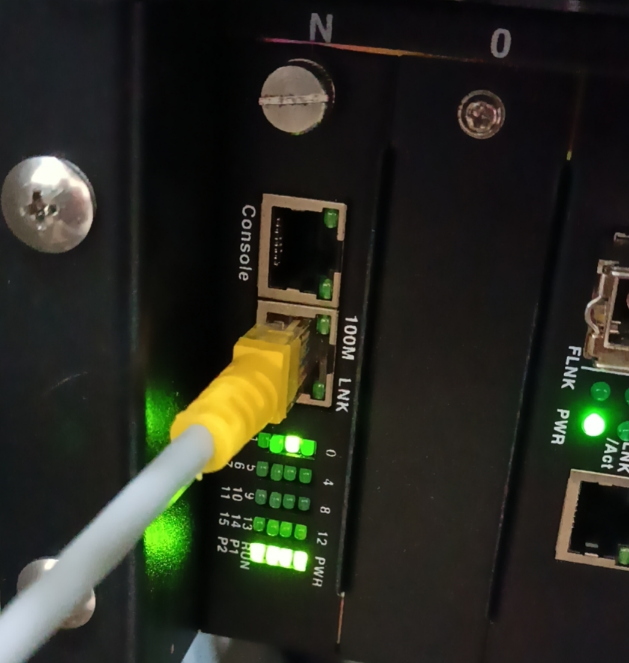

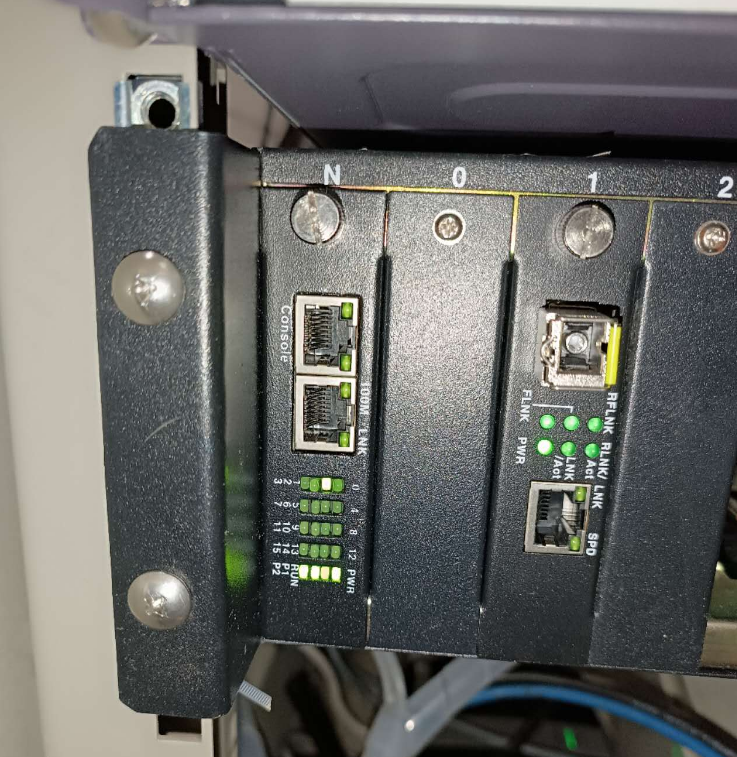

SNMP network management card inserted in 0st slot on 17-port rack can manage communication equipments on 1-16th slots and two communication power supply.

1.2 Product characteristic:

◆ standard SNMP network management agreement, completely supports MIB storehouse;

◆ supports IE browser to examine system status and to set parameter;

◆ graphic screen is in accordance with indicating status of actual equipment;

◆ supports spanning-net communication, network management main engine can manage many sub-bureaus equipment;

◆ supports monitoring of local equipment to remote-end equipment;

◆ number of monitored equipments depends on the number of IP resource;

◆ demonstrates comprehensive history alarm and current alarm.



1.3 Working Condition：

Power consumption:    <3W

Operating temperature:  0°C ~ 50°C

Storing temperature:    －40°C ~ +70°C

Relative humidity:     95 %

Without disturbance of erosive and solvent gas, raising dust or strong magnetic field
