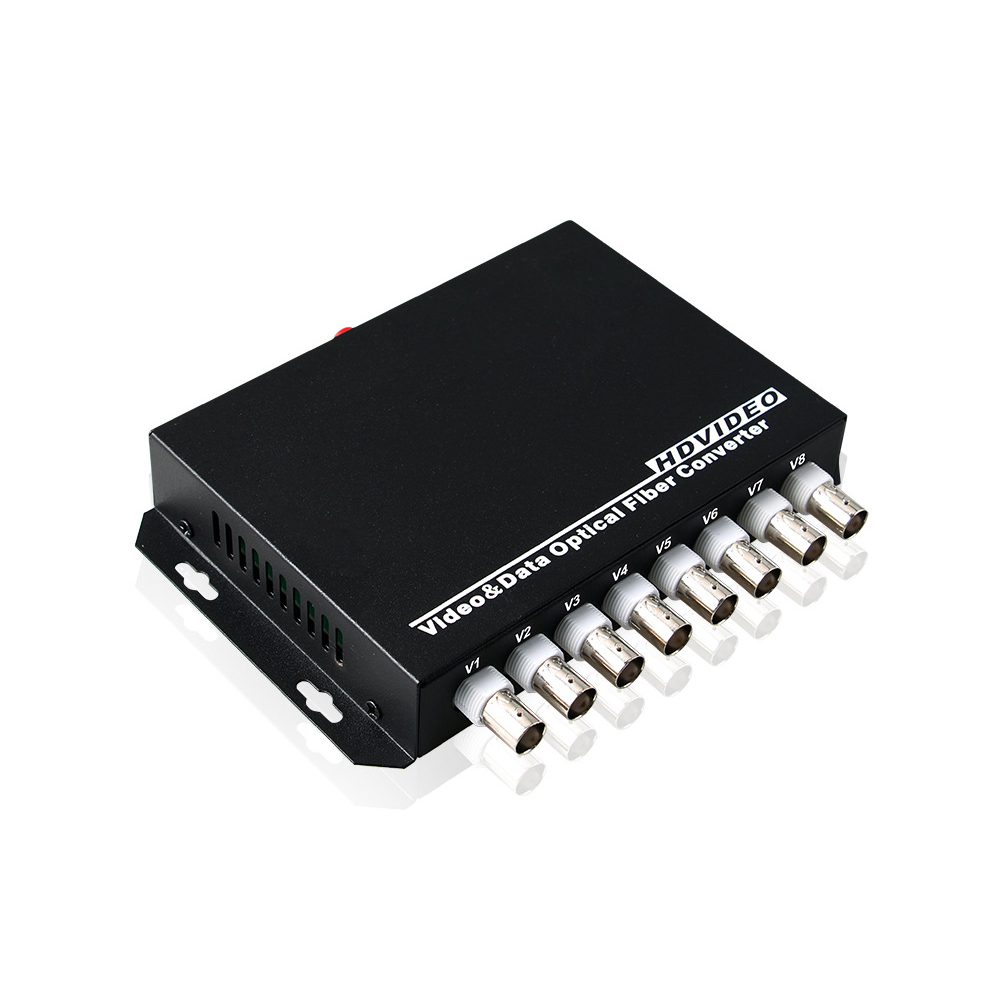

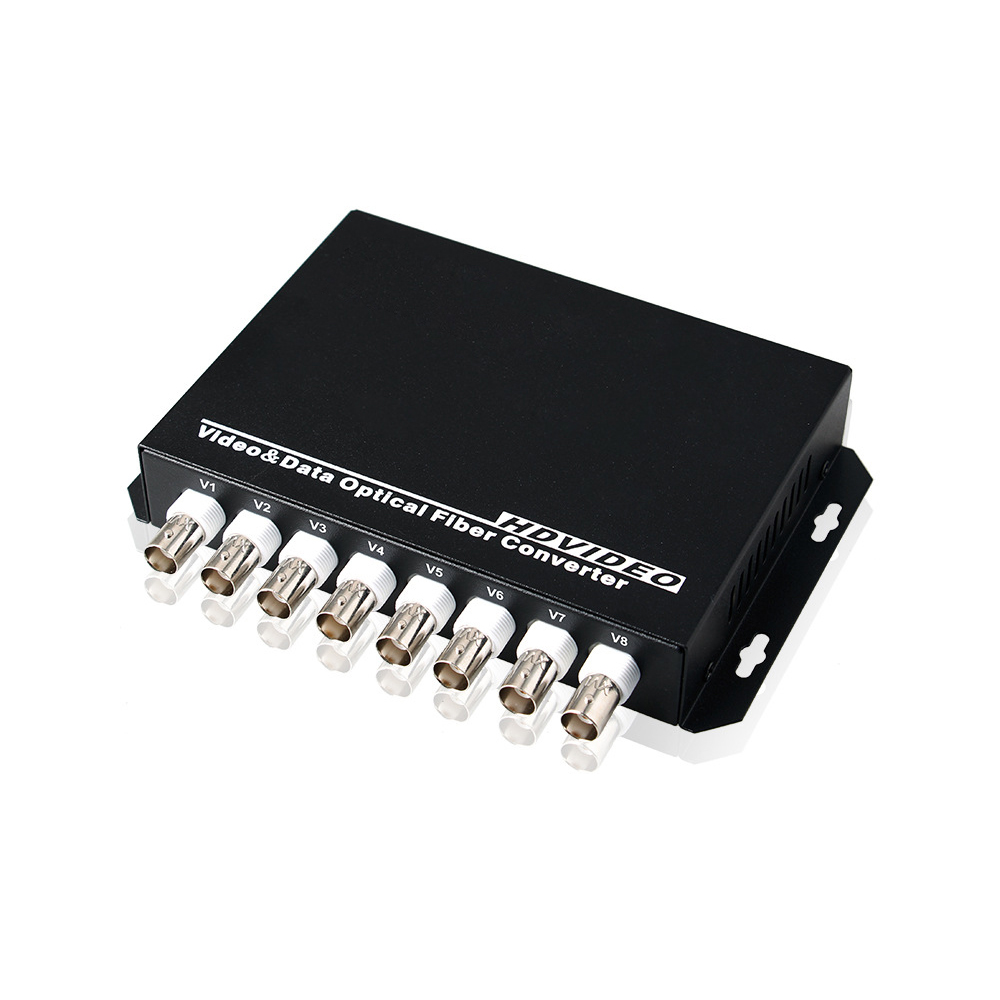

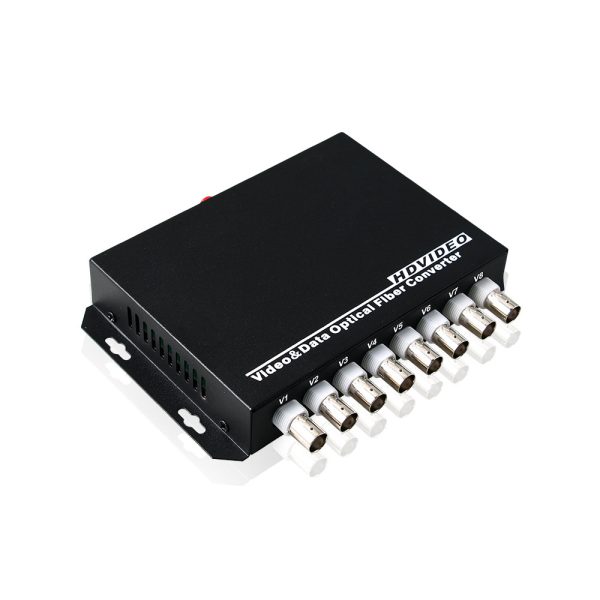

8-CH CVI/AHD video converter-720P
8 Channel CVI-AHD-TVI HD video transmission.
Description
Features
◆ Lossless, HD, real-time transmission
◆ Automatic identify the input video formats
◆ Support ultra-distance coaxial transmission
◆ Support single fiber simultaneously transmit multiple video and composite signals
◆ Supports a variety of standard switch 720p | 25/30/50/60 frame, 1080p | 25/30 frames
◆ Wide temperature dust-free prospective industrial design, the device supports outdoor high and low temperature harsh environments
◆ Plug and play, easy installation and operation

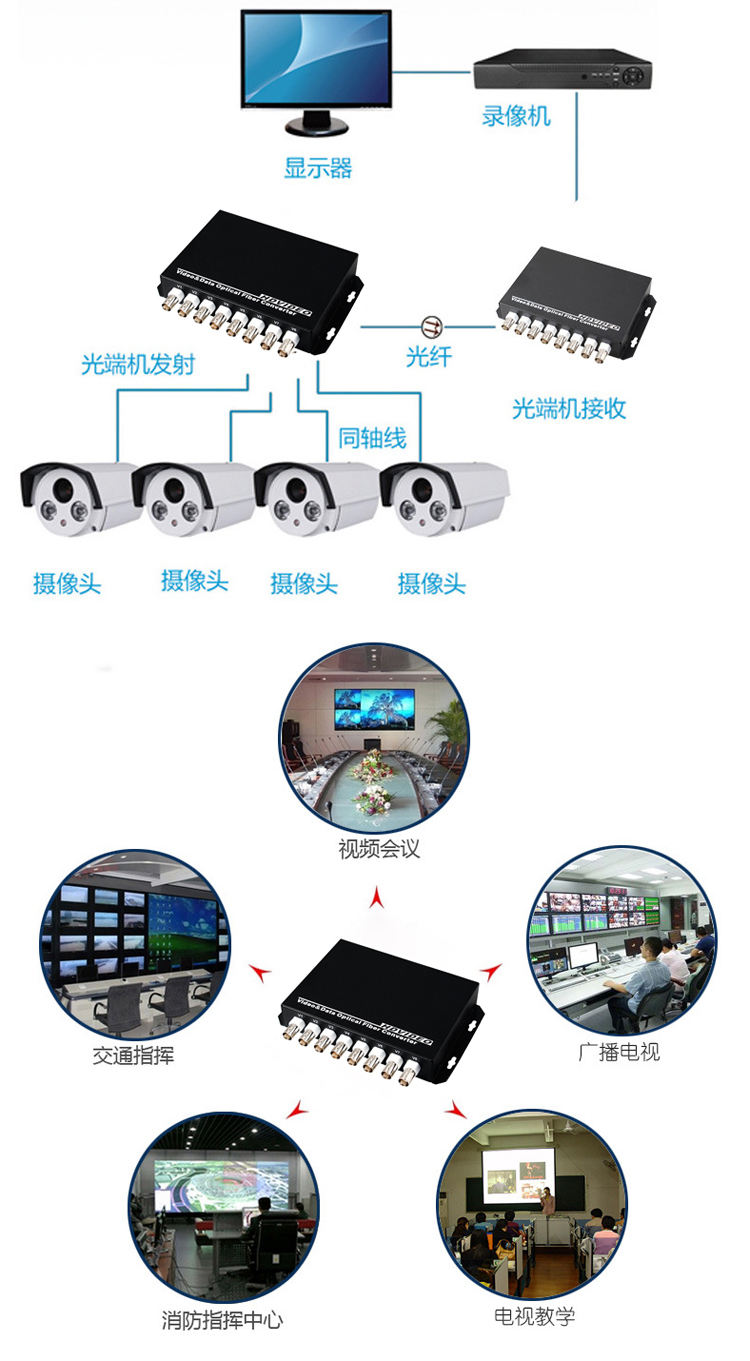

Application
720P CVI Video Converter is based on the Mid-end and high-end products, targeting in high-end project application, fully inherited the CVI technical features, including ultra-distance coaxial transmission, RS485 control complex transmission characteristics; Multiple Video Converter supports loop-through output, design for high and low temperature and dust-proof, ensure the equipment is suitable for outdoor harsh environments.
Order Information
|
Model |
Specification (Fiber Interface: FC) |
Transmission Distance |
| BGCVI-1VZ-20 | 1-CH CVI Video Converter,Single fiber, FC, DC5V2A | 20KM |
| BGCVI-2VZ-20 | 2-CH CVI Video Converter,Single fiber, FC, DC5V2A | 20KM |
| BGCVI-4VZ-20 | 4-CH CVI Video Converter,Single fiber, FC, DC5V2A | 20KM |
| BGCVI-8VZ-20 | 8-CH CVI Video Converter,Single fiber, FC, DC5V2A | 20KM |
| BGCVI-16VZ-20 | 16-CH CVI Video Converter,Single fiber, FC, AC220V | 20KM |
Note: Each model can be with 1 channel RS485 reverse data.
| Technical Specification | |
| Product Name | 8 Channel CVI/AHD video converter |
| Model | BGCVI-8VZ-20 |
| Description | HDCVI/AHD coaxial |

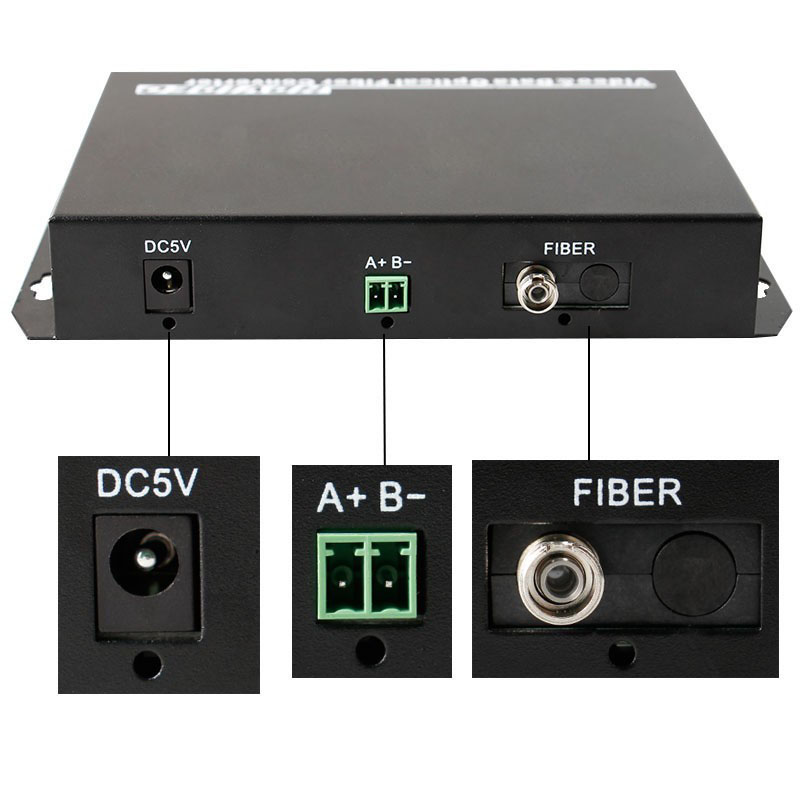

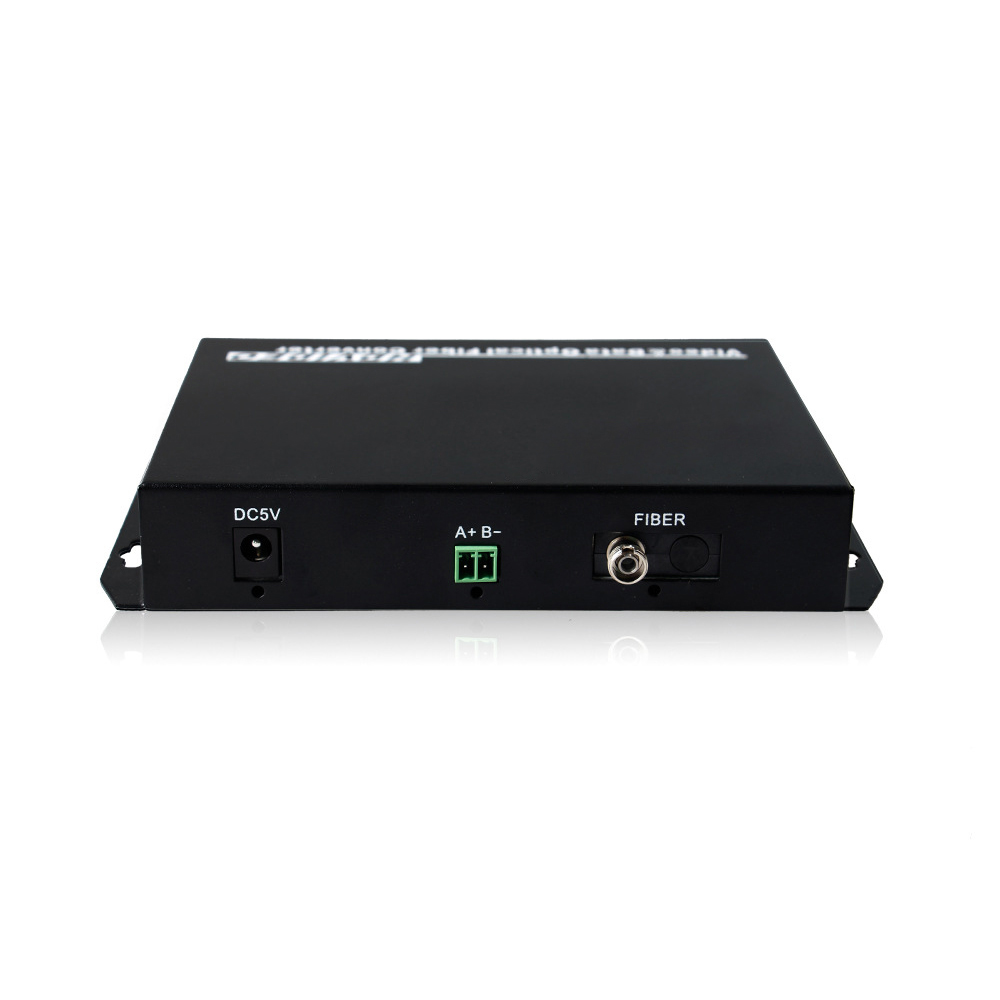

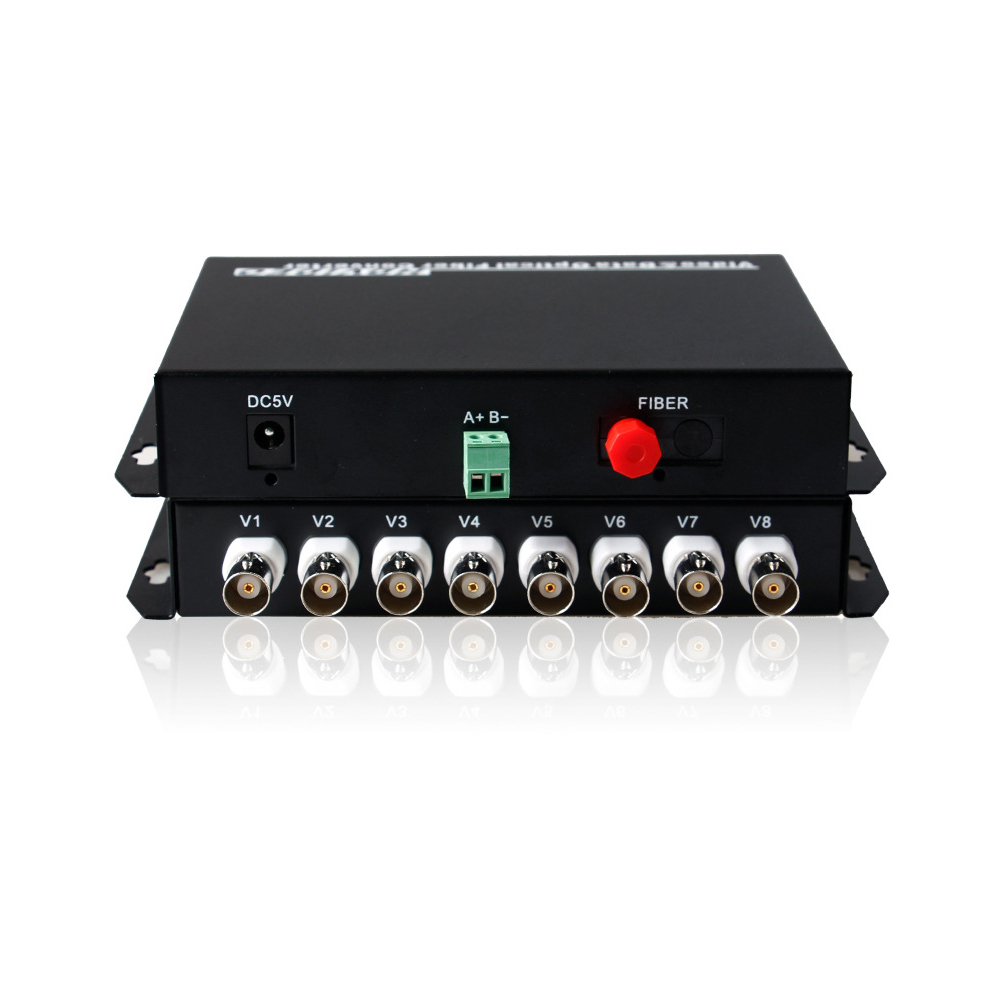

| Ports | One FC fiber port+ 16 BNC port |
| Transmission Distance | 20KM(Single mode) |
| Fiber Interface | FC 1310nm/1550nm |
| Video Interface | BNC |
| Physical Interface |
FC fiber interface Single Mode/Multimode |
| Transmission distance | 0~500M(multimode) / 0~20/40KM(single mode) |
| Input / output wavelength |
The transmitter side: 1310nm transmit 1550nm receive; The receiving side: 1550nm transmit 1310nm receive |
| Laser power | -8~ -3dBm / -3~+2dBm |
| Receiver sensitivity | -25dBm |
| Fiber Type |
Multimode: 50/125um62.5/125um Single mode: 9/125um |
| Video |
720p|25/30 fps 1080p|25/30 fps |
| Input Level | >500mVp-p |
| Output Level | 1Vp-p |
| Automatic cable | 1080p: 75-5 Coax Support 300m 720p: 75-5 Coax Support 500m |
| Input and output impedance | 75Ω |
| Physical Interface | BNC |
| Video Input | 8 channels |
| Video Output | 8 channels |
| Output loop-through | 8 channels |
| Video Bandwidth | 45MHz |
| Sampling bandwidth | 10bit |
| Baud Rate | 1200-9600bps |
| BER | <10-9 |
| Operating mode | Half-duplex |
| Working Environment |
Operating Temperature: -40°～ 85°C Storage Temperature: -45°～ 95°C Operating Humidity: 5%～95% non-condensing |
| Warranty | 3 year warranty |
