256CH+4FE Fiber Telephone Multiplexer
4U rackmount multiplexer，256 * thelephone，4*100/1000 Mbps Ethernet，E1，Console or SNMP
Description
Overview
The series equipment is the company developed the PCM optical fiber transmission for the large scale integrated circuit on base of the developed of optical fiber transmission Provide 256 channel call，4 channel 10/100M fast Ethernet（line 100M），1 expansion interface(RS232/RS485/RS422 asynchronous data、switch signal）Ethernet interface can exchange for each other ,and VLAN division. The working is reliable, stable, and low power consumption, high integration, small size, easy of installation and maintenance
Features
Ø Based on self -copyright IC

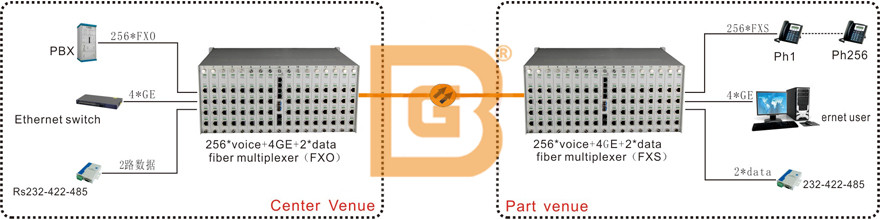

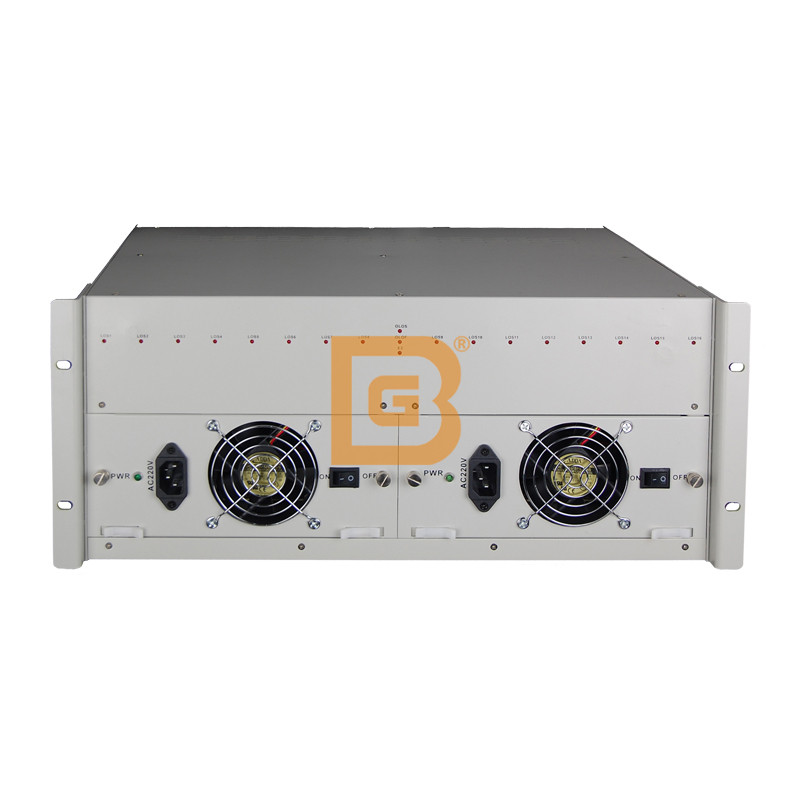

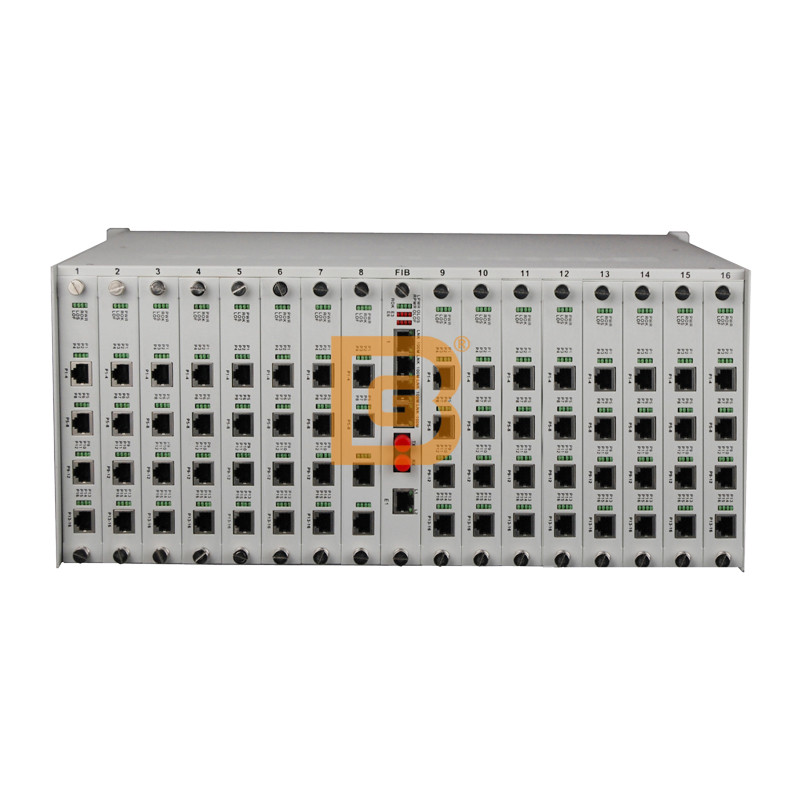

Ø The equipment for 4U 19 inch a total of optical port plate with 16 function board.
Ø Maximum configured to call 256,if you want to configure SNMP Network management need to remove a 16 way call board configuring 1*N E1 board needing to remove a 16 way call board too.
Ø 250 Channel voice access, supports caller ID feature and reverse polarity billing functions
Ø Support various sites mutual number allocation function
Ø Voice port supports FXO and FXS port,, FXO port docking with program-controlled switchboard,
FXS port connected to the user’s telephone
Ø 4Channel Ethernet interface is switch interface, support VLAN
Ø Ethernet interface rate is 10/100M,duplex/half duplex adaptive
Ø Can command the remote interface loop back to maintain the circuit
Ø The transmission distance is up to 2-120Km without interruption
Ø AC 220V, DC-48V, DC24V can be optional
Ø DC-48V/DC24V power has polarity automatic detection function, you can install the device without differentiation between positive and negative polarity.
Ø telephone interface with lightning protection, lightning reached 17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs, open-peak output voltage 6KV standards.
u Fiber
Multi-mode Fiber
50/125um 62.5/125um
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
link budget: 16dBm
Single-mode Fiber
8/125um 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
link budget: 18dBm
u E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance) 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Ethernet interface(100/100M)
Interface rate: 10/100 Mbps half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45 support Auto-MDIX
u FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
Connector: RJ45
u FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
Connector: RJ45
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
