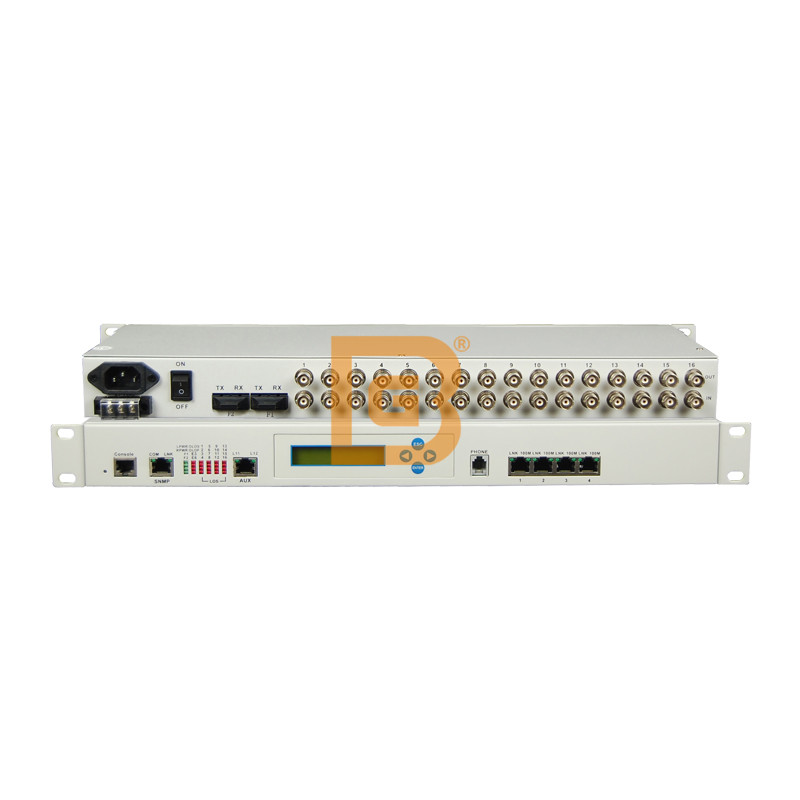

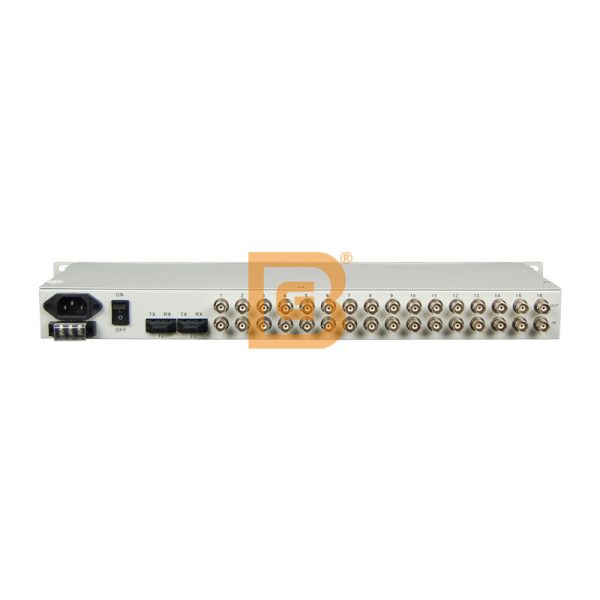

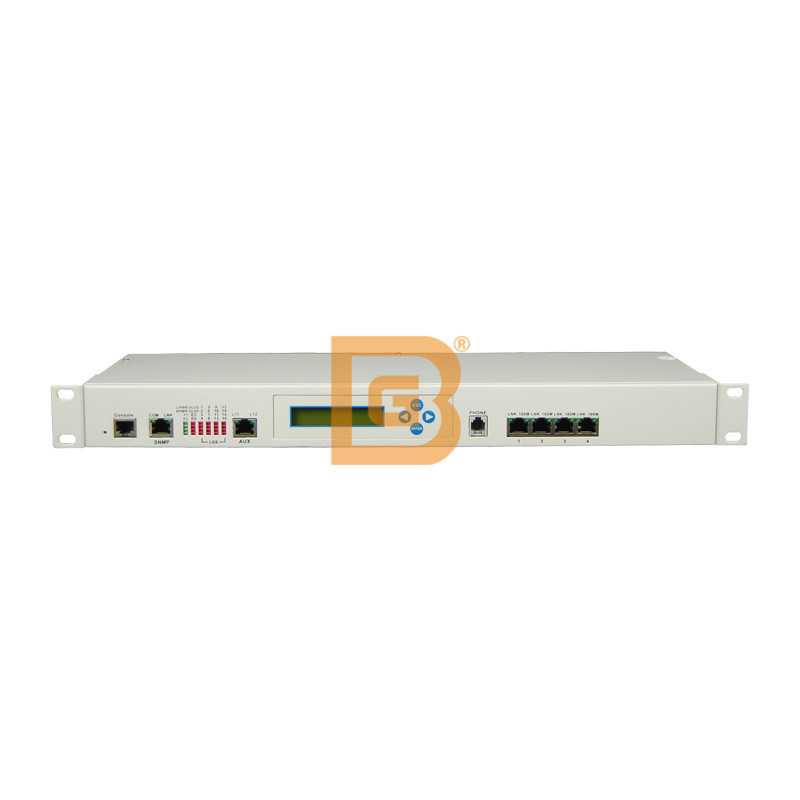

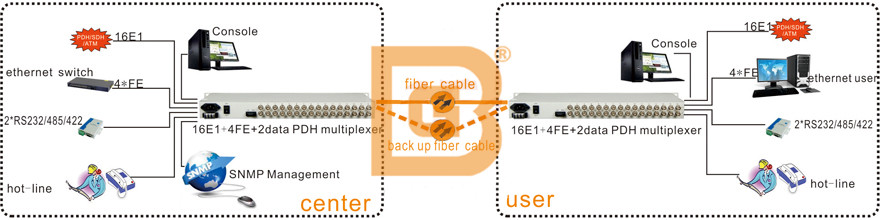

This device has the console control ,provides the 1+1fiber path protection ,point to point optical transmission, LCD display , on the basic of our company development of the PDH optical transmission, use the special VLSI and the SNMP NMS.
The device provides 1-16Channel E1 interface, 1-4Channel 10M/100M Ethernet interface (Line Rate 100M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 2 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size
Features
Ø Provides 16 E1 transparent transmission;
Ø With char 16*2 LCD display and SNMP agent inside
Ø Provide Console manage interface (RS232)
Ø Provide two fiber interface 1+1 protect(APS)function ,and ALS(Automatic Laser Shutdown/Reduction)function
Ø Provide 4 100M line Ethernet channel support mutual negatiate, Ethernet bandwidth is set on base on multiple of 32K
Ø Provide one hotline channel for option,
Ø Provide two fiber interfaces, one as master, the other as slave, insuring uninterrupted service transmission
Ø The rate of optical port is 155Mbps, transmission range can reach 25KM, 40KM, 60KM, 80KM or 100KM;
Ø E1 interface code is HDB3,E1 vibration characteristic conforms to ITU-T G.703、G.823 and G.742;
Ø Ethernet port supports full/half duplex, 10M/100M auto-ataptable;
Ø Ethernet port supports VLAN function and has 4devision mode for user selection;
Ø Ethernet package size support 1916 byte and 4 Ethernet port could be set seperately;
Ø Has complete alarm function and can monitor remote device status;
Ø Supports E1 loop from remote so as to detect and manage device conveniently;
Ø The combination AC220V and DC-48V for redundant
u Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Ethernet interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Power
Power supply: AC180V ~ 260V;DC –48V;DC +24V
Power consumption: ≤10W
u Dimension
Product size: 19 inch 1U 485 X138 X45 mm(WXDXH)
Simple packaging: 522X198X82mm( WXDXH)
Piece weight: 3KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
