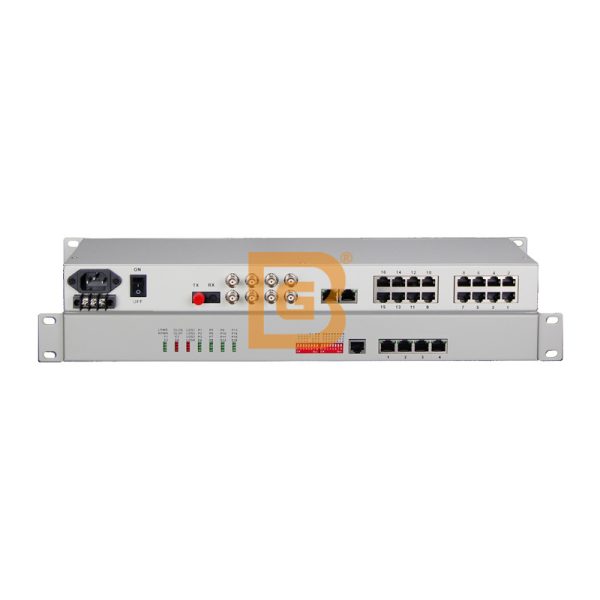

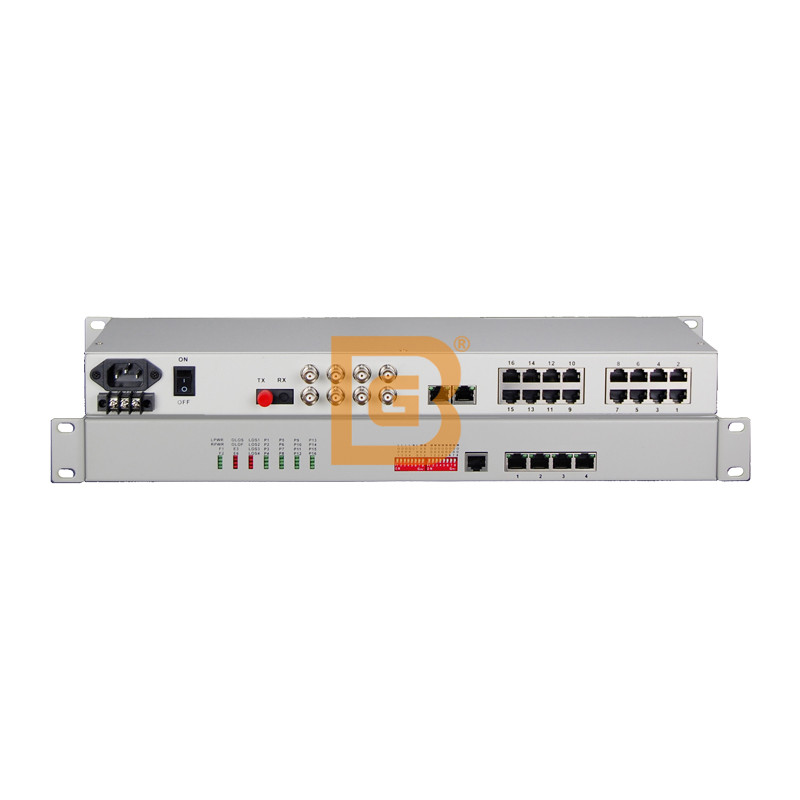

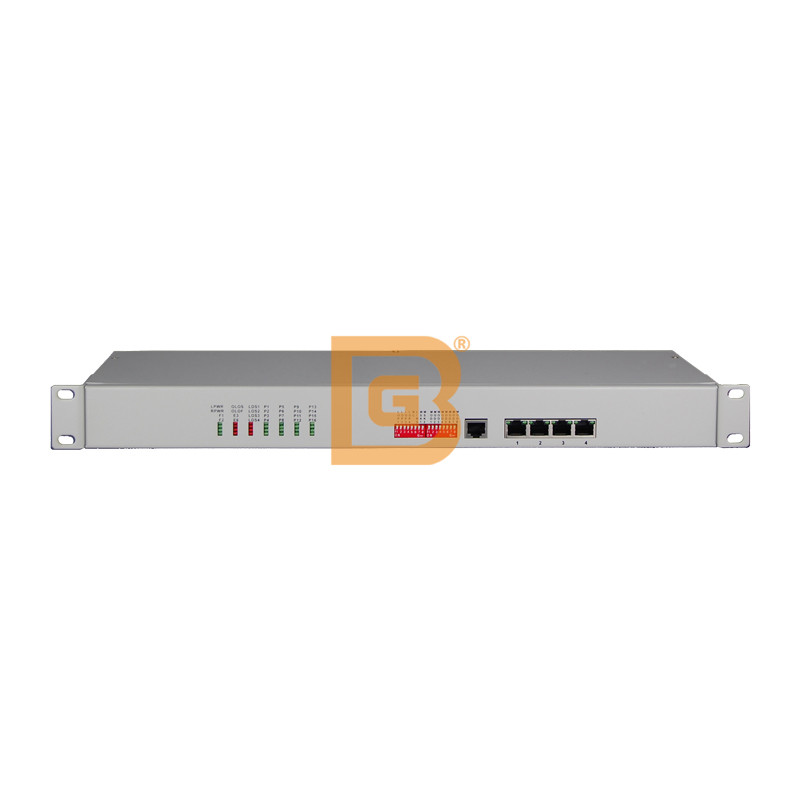

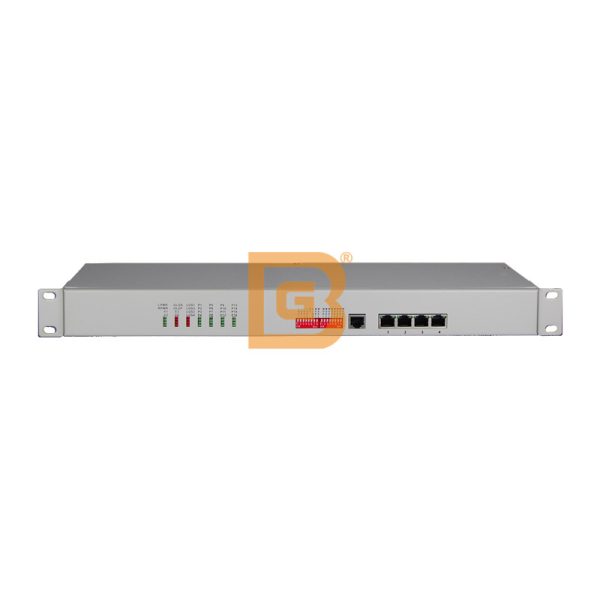

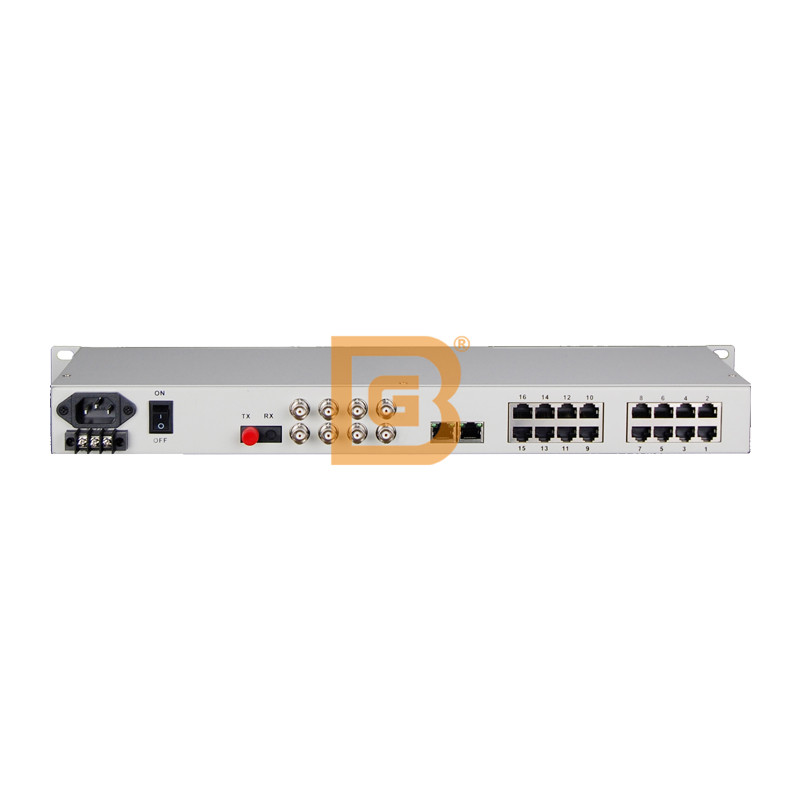

16CH Fiber Telephone Multiplexer
Managed 16 POTS（FXO/FXS）over fiber mux with console and snmp ,19″inch or 6U rackmount
Description
Overview
The phone provides 16 channels of Optical FXO / FXS phone, can provide 19 inches 6U rack 1U desktop and plug-in, support SNMP network management；
Features
The phone provides 16 channels of Optical FXO / FXS phone, can provide 19 inches 6U rack 1U desktop and plug-in, support SNMP network management；
Features
Ø Based on proprietary integrated circuit;
Ø E1 interface complies with G.703, all-digital clock recovery and smooth phase-locked technology;
Ø support FXO voice port FXS ports and ports, EM2 / 4 audio interface, magneto telephone interface;
FXO port and PBX docking port and the user is connected to FXS telephone;
Ø Voice FXO / FXS access, support caller ID function and reverse polarity billing functions;
Ø Support Telephone Number mutual function of each site;
Ø unrepeated transmission distance of up to 2 to 120 km;
Ø multiple power mode options: AC220V, DC-48V / DC24V, etc;
Ø telephone interface with lightning protection, lightning reached 17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs, the peak output voltage 6KV open standards;
u Fiber
Multi-mode Fiber
50/125um 62.5/125um
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
link budget: 16dBm
Single-mode Fiber
8/125um 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
link budget: 18dBm
u FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
u FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
u EM 2/4 Line
AD: 0dB
DA: -3.5dB
Two/Four-line Impedance: 600 Ohm
Return loss: 20 dB
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size: 19inch 485X200X45mm(WXDXH)
Piece Weight : 2.4KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

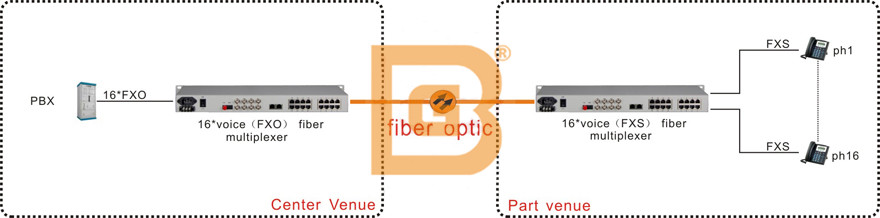

Application：
