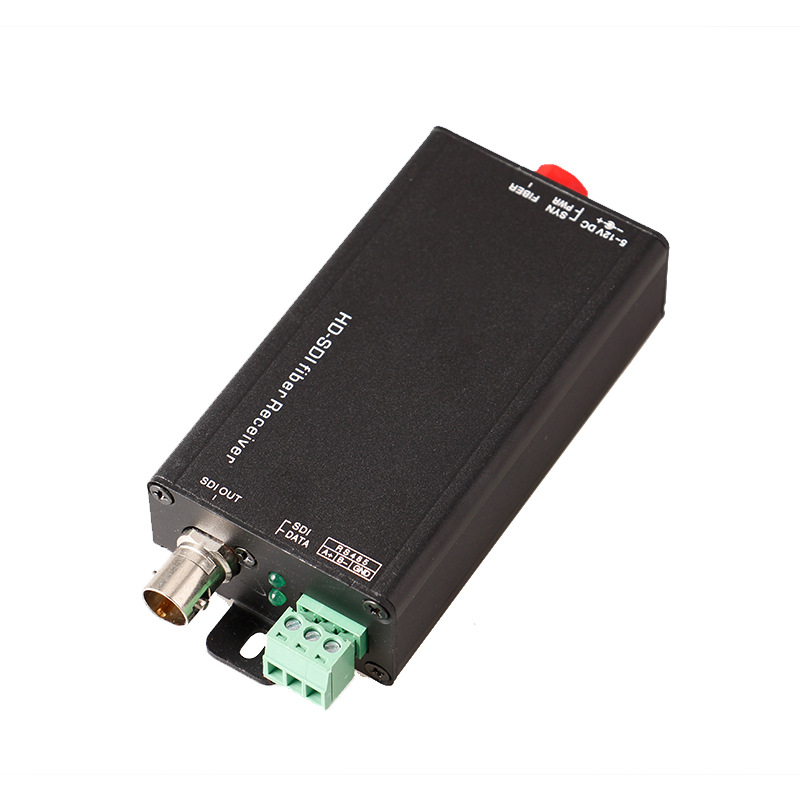

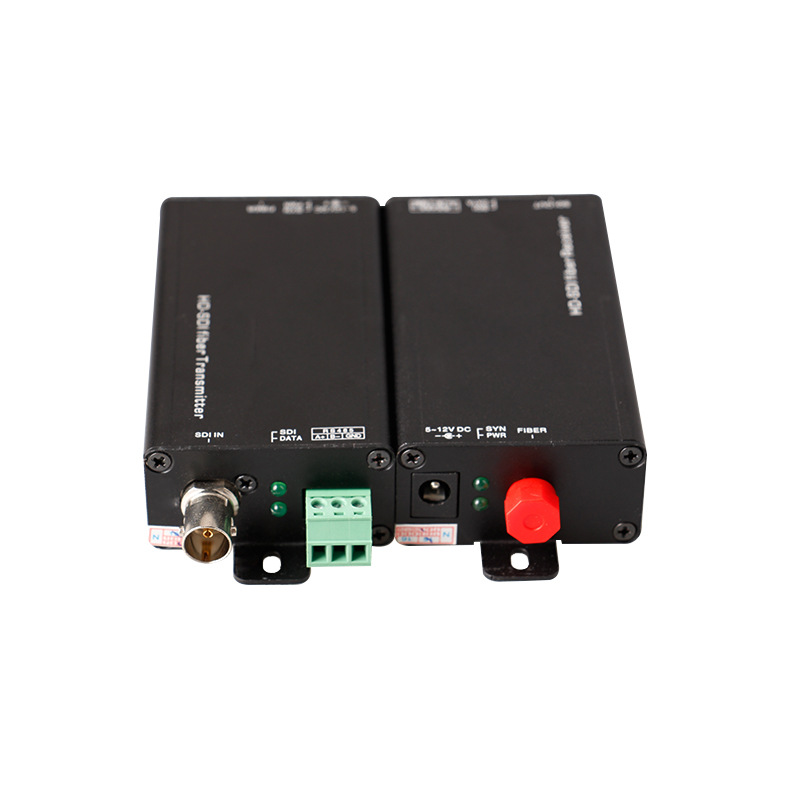

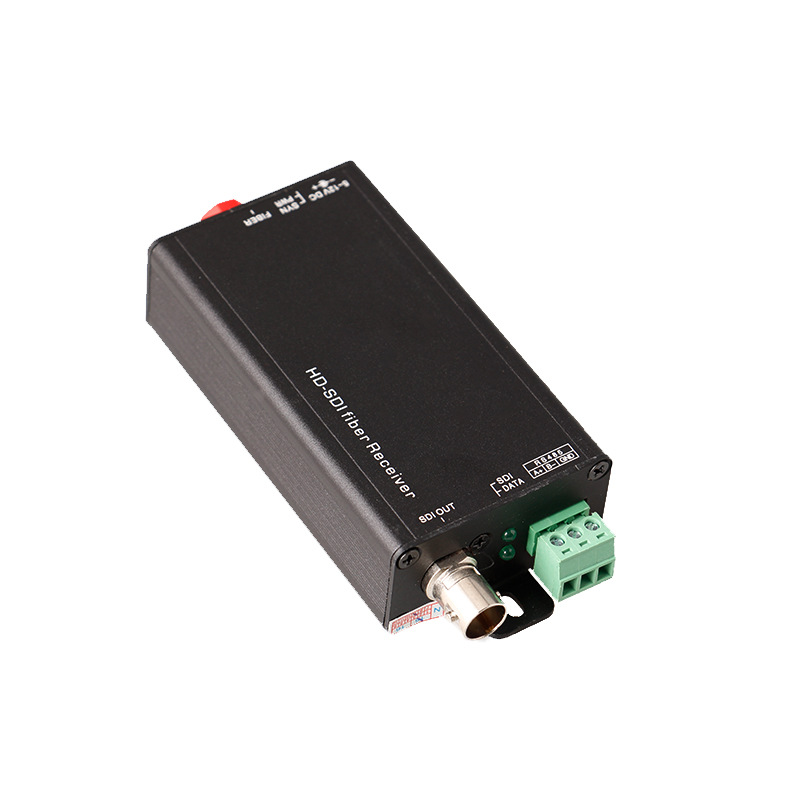

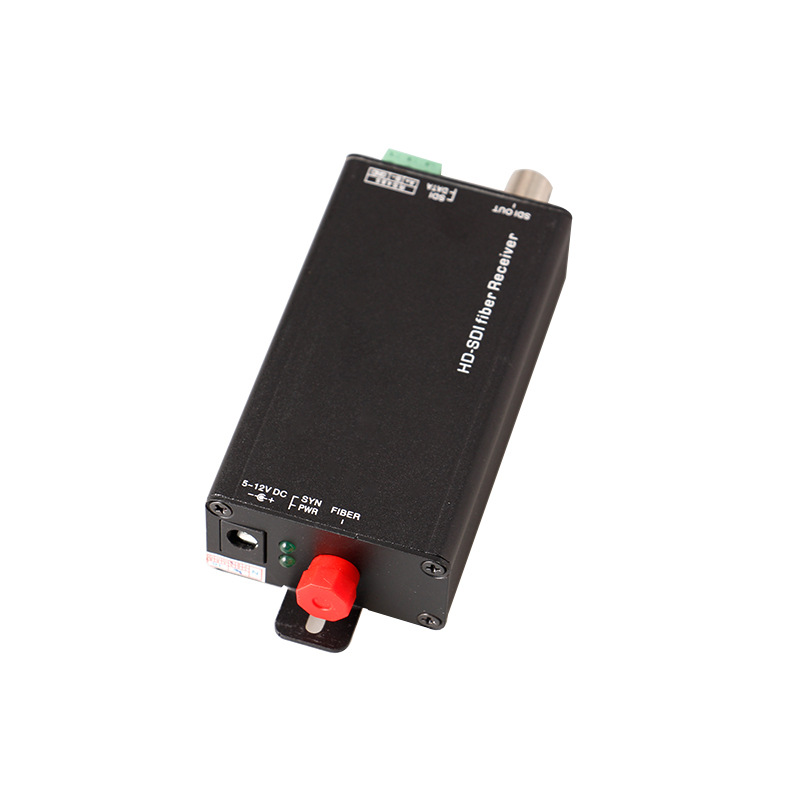

1 CH SDI Video Multiplexer
Supoort 1 channel high-definition HD-SDI camera video signal and control PTZ.
Description
Features
◆ Compatible with HD-SDI and ASI signals, SDI / ASI signal adaptive
◆ Compatible with HD-SDI and ASI signals, SDI / ASI signal adaptive
◆ Meet SMPTE259M, SMPTE297M, SMPTE310, SMPTE305 (SDTI) standard
◆ Automatically adapt SDI143 Mbps, 177 Mbps, 270Mbps, 360 Mbps, 540Mbps, 1.48Gbitt rate
◆ High-precision PCR correction, the average PCR jitter is usually maintained at 20 ~ 60ns
◆ Transmitter output power 0 ~ -14dBm (loss determined according to the actual chain of transmission power)
◆ By Pathological (extremely harsh environments) Test
◆ Support 1080P 30HZ / 1080I / 720P; suitable for HD-SDI monitoring system and the broadcasting system.
◆ Full surface mount technology
◆ Industrial design, high reliability
◆ Support customization and OEM

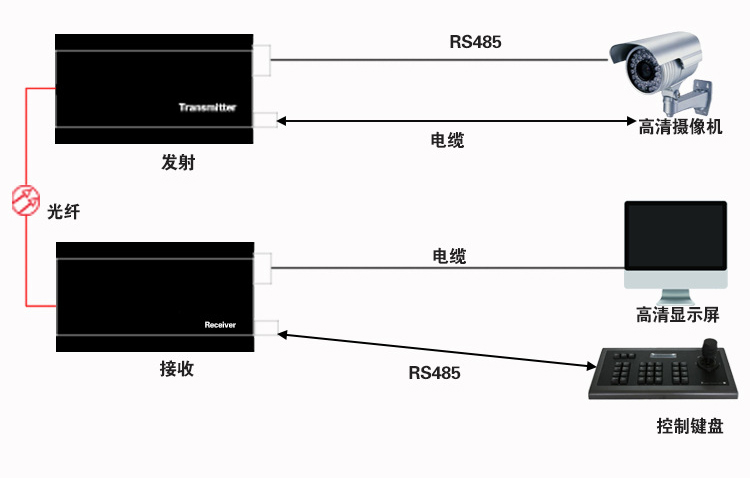

Application
Application
◆ Urban Intelligent Traffic Monitoring System (ITS), Safe City
◆ Highway monitoring system, electronic road monitoring, capture system
◆ Large industrial enterprise security monitoring system, network multifunction system
◆ Remote multimedia teaching / campus monitoring, video conferencing systems
◆ Long-distance radio and television, high-quality video and audio transmission system
◆ Building intercom, military communications, military surveillance
◆ Building intercom, military communications, military surveillance
Ordering information
| Model | Specification | Distance | |
| BGSDI-1VZ-2 | SDI Video Multiplexer | 500m（Multimode Single Fiber） | |
| BGSDI-1VZ-20 | SDI Video Multiplexer | 20km（Single Mode Dual Fiber） | |
| BGSDI-1VZ1DF-20 | HD-SDI+1 CH Reverse Data Video Multiplexer |
20 km（Single Mode Single Fiber） |
|
| Technical Specification | |
| Product Name | HD-SDI video converter |
| Model | BGSDI-1VZ1DF-20 |
| Description | Compatible with SDI and ASI signal，SDI/ASI signal self-adaption |
| Ports | 1 channel HD-SDI, + 1 channel reverse data(RS485/232/422 data) |
| Transmission Distance | 20km-100km |
| Fiber Interface | FC, 1310nm/1550nm |
| Video Interface | BNC |
| Reflection loss | ＞15dB |
| Working Environment |
Operating Temperature: -40°～ 85°C Storage Temperature: -45°～ 95°C Operating Humidity: 5%～95%, non-condensing |
| EMI Compatiblity | FCC Class A, CE |
| Total power consumption | 3w(Input:DC5V) |
| Power Supply | AC85-260V/50Hz |
| Dimensions size | 20.8*20.8*2.5cm |
| Warranty |
3 year warranty |
